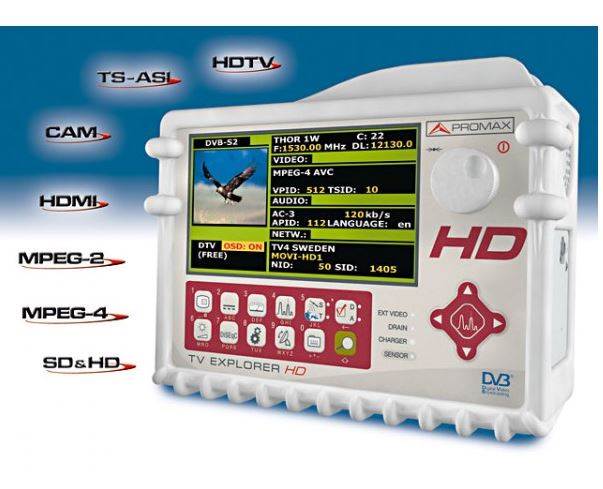

Miernik PROMAX TV EXPLORER HD

Skontaktuj się z nami

Cena brutto: 24100,00

Cena netto: 19593,50 zł

Opis:

TV EXPLORER HD - uniwersalny przyrząd przy instalacjiwszystkich sieci (S, S2, C, T, H). Faktyczny miernik sygnałów HDTV, podgląd programów HD (również kodowanych CAM), wewnętrzny dekoder H.264, wejście/ wyjście TS-ASI, złącze HDMI

Charakterystyka:

DANE TECHNICZNE TV EXPLORER HD

GENERAL

·         Frequency margin Continuous tuning from 5 to 1000 MHz and from 950 to 2150 MHz

·         Tuning modes Chanel or frequency (IF or downlink at satellite band)

·         Channel plan Configurable on demand

·         Resolution

·         5-1000 MHz 50 kHz

·         950-2150 MHz < 200 kHz (span FULL-500-200-100-50-32-16 MHz)

·         Automatic search (Explorer) Threshold level selectable. DVB-T/H, DVB-C and DVB-S2 selection

·         Analogue and digital signal identification Automatic

·         Transport Stream parameters identifying Detection of Audio and video bitrate, Network ID and Service list

VIDEO

·         Digital modulations DVB-T, DVB-H, DVB-S, DVB-S2, DVB-C

·         Resolutions 1080i, 720p, 576i

·         Video formats MPEG-2, MPEG-4 H.264

·         Colour system PAL, NTSC, SECAM

·         TV standard M, N, B, G, I, D, K and L

·         Aspect ratio 16:9, 4:3

·         RF INPUT

·         Impedance 75 Ω

·         Connector Universal, with BNC or F adapter

·         Maximum signal 130 dBµV

·         Maximum input voltage

·         DC to 100 Hz 50 V rms (powered by the AL-103 power charger)

·         30 V rms (not powered by the AL-103 power charger)

·         5 MHz to 2150 MHz 130 dBµV

DIGITAL MEASUREMENTS Numeric and level bar

·         DVB-T/H (COFDM) Power, CBER, VBER, MER, C/N and Noise margin

·         DVB-C (QAM) Power, BER, MER, C/N and Noise margin

·         DVB-S (QPSK) Power, CBER, VBER, MER, C/N and Noise margin

·         DVB-S2 (QPSK/8PSK) Link Margin, Power, CBER, LBER, MER, C/N and Noise margin

ANALOGUE MEASUREMENTS

·         Terrestrial bands Level, V/A ratio, C/N ratio and FM deviation and demodulation

·         Satellite bands Level and C/N ratio

·         ADVANCED FUNCTIONS Constellation diagram for DVB-T/H, DVB-C, DVB-S and DVB-S2

·         Echoes analyser mode

·         Built-in spectrum analyser with direct access keys

·         Datalogger (measurements automatic acquisition and storage) for digital and analogue channels

·         SAT IF test (IF distribution network response for satellite band)

·         Attenuation test function (signal distribution network response for terrestrial band)

·         DiSEqC generator and LNB supply

·         Audio and Video recording and playing

CONNECTIONS

·         SCART, HDMI, TS-ASI (input and output), USB, Common Interface

MECHANICAL FEATURES

·         Dimensions 230 (W.) x 161 (H.) x 76 (D.) mm.

·         Total size: 2,814 cm3

·         Weight 2.2 kg (without holster)
