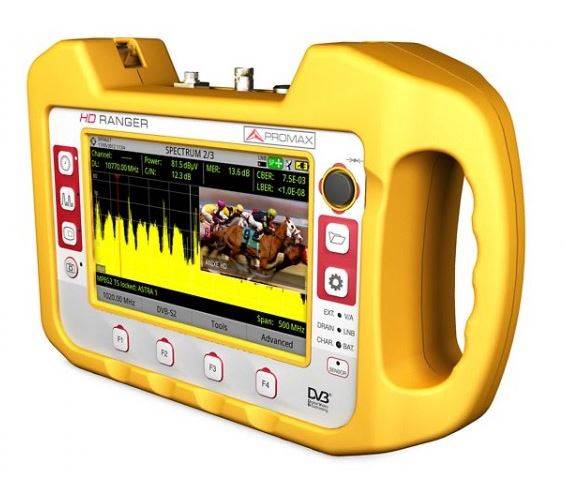

HD Ranger TV/SAT Analyser

Skontaktuj się z nami

Cena brutto: 13120,00

Cena netto: 10666,67 zł

Opis:

HD RANGER uniwersalny analizator sygnałów TV SAT w różnych standardach stosowanych na całym świecie. Umożliwia analizę sygnału również w najnowszych technologiach takich jak DVB-T2/C2/S2 ( DVB-T/C/S ) z MPEG-2 i MPEG-4.

Charakterystyka:

HD RANGER  uniwersalny analizator sygnałów TV SAT w różnych  standardach stosowanych na całym świecie. Umożliwia analizę sygnału również w najnowszych technologiach takich jak   DVB-T2/C2/S2 ( DVB-T/C/S ) z MPEG-2 i MPEG-4.

Jedną z najbardziej zauważalna cechą tego miernika jest ultraszybka analiza spectrum - w 90 milisekund.

Miernik wyposażony jest w 7-calowy ekran HD z funkcją muitiple scren.



DANE TECHNICZNE HD RANGER

·         Digital frequency synthesis From 5 to 1000 MHz (terrestrial) and from 950 to 2150 MHz (satellite)

·         Tuning modes Channel or frequency (IF or downlink at satellite band)

·         Channel plan Configurable on demand

·         Resolution 10 kHz

·         Analogue and digital signal identification Automatic, with no user intervention

VIDEO

·         Digital modulations DVB-T, DVB-S, DVB-C and DVB-S2

·         Resolutions 1080, 720, 576. Progressive or interlaced

·         Video formats MPEG-2 (MP@HL). MPEG-4 AVC H.264

·         SI/PSI data Service list and main PIDs

·         Colour system PAL, NTSC, SECAM

·         TV standard M, N, B, G, I, D, K and L

·         Aspect ratio 16:9, 4:3

·         DIGITAL AUDIO CODECS MPEG-1, MPEG-2, HE-AAC

·         RF INPUT Universal connector with BNC or F adapter, 75 Ω

·         Maximum signal 130 dBµV

·         Maximum input voltage

·         DC to 100 Hz 50 V rms (powered by the AL-103 power charger)

·         30 V rms (not powered by the AL-103 power charger)

·         5 MHz to 2150 MHz 140 dBµV (protected at least for 30 seconds)

·         DIGITAL MEASUREMENTS Numeric and level bar

·         DVB-T (COFDM) Channel power, CBER, VBER, MER

·         DVB-S (QPSK) Channel power, CBER, VBER, MER, C/N ratio, Link margin

·         DVB-C (QAM) Channel power, BER, MER

·         DVB-S2 (QPSK/8PSK) Channel power, CBER, LBER, MER (up to 30 dB), C/N ratio, BCH ESR, Wrong packets, Link margin

ANALOGUE MEASUREMENT

·         Level, V/A ratio, C/N ratio (terrestrial bands) / Level, C/N ratio (satellite bands)

SPECTRUM ANALYSER MODE

·         Measurement range and bandwidth From 10 dBµV to 130 dBµV. Bandwidth 100 kHz

·         Selectable SPAN Full span (ful band) - 500 - 200 - 100 - 50 - 20 - 10 MHz

·         Markers 1, with frequency and level indication

·         Reference level From 65 dBuV to 135 dBuV (5 dB steps)

·         Measurements

·         Analogue channels V/A ratio (terrestrial only), Level, C/N ratio

·         Digital channels Channel power, C/N ratio, MER, BER (according to modulation type)

·         Spectrum range SPAN, Dynamic range and Reference level (available by means of arrow cursors)

TOOLS & ADVANCED FUNCTIONS

·         Constellation diagram for DVB-T/S/C and DVB-S2

·         Datalogger (automatic measurement acquisition and storage) (1)

·         LTE ingress for DVB-T and DVB-C

·         SAT IF test (IF distribution network response for satellite band) (2)

·         Attenuation test function (signal distribution network response for terrestrial band) (3)

·         DiSEqC™ 1.2 generator (4)

·         . External units supply: 5/12/13/18/24V + 22 kHz signal (depending on band)

·         PLS sequence detection

·         ISI filtering for DVB-S2

·         FM radio with FM decoder (Radio Data Sysytem)

·         Screenshot key

·         USB interface: flash drive mass storage, serial port emulation, CDC “Communicacions Device Class”

·         CONNECTIONS USB, Input and output Video/Audio multipole jacks

INCLUDED ACCESSORIES

·         RCA to multipole jack adaptor cable for Video and Left/Right audio

·         USB Cable (A) Female to Mini USB (A) Male, Car lighter charger, External DC charger,

·         Mains cord, Transport belt and small accessory bag,

·         F adapters: F/H to BNC/H, F/H to DIN/H, F/H to F/H

OPTIONAL ACCESSORIES

·         Transport case

MECHANICAL FEATURES

·         Dimensions 290 (W.) x 185 (H.) x 65 (D.) mm. Total size: 3,487 cm3

  • Weight 1.9 kg
